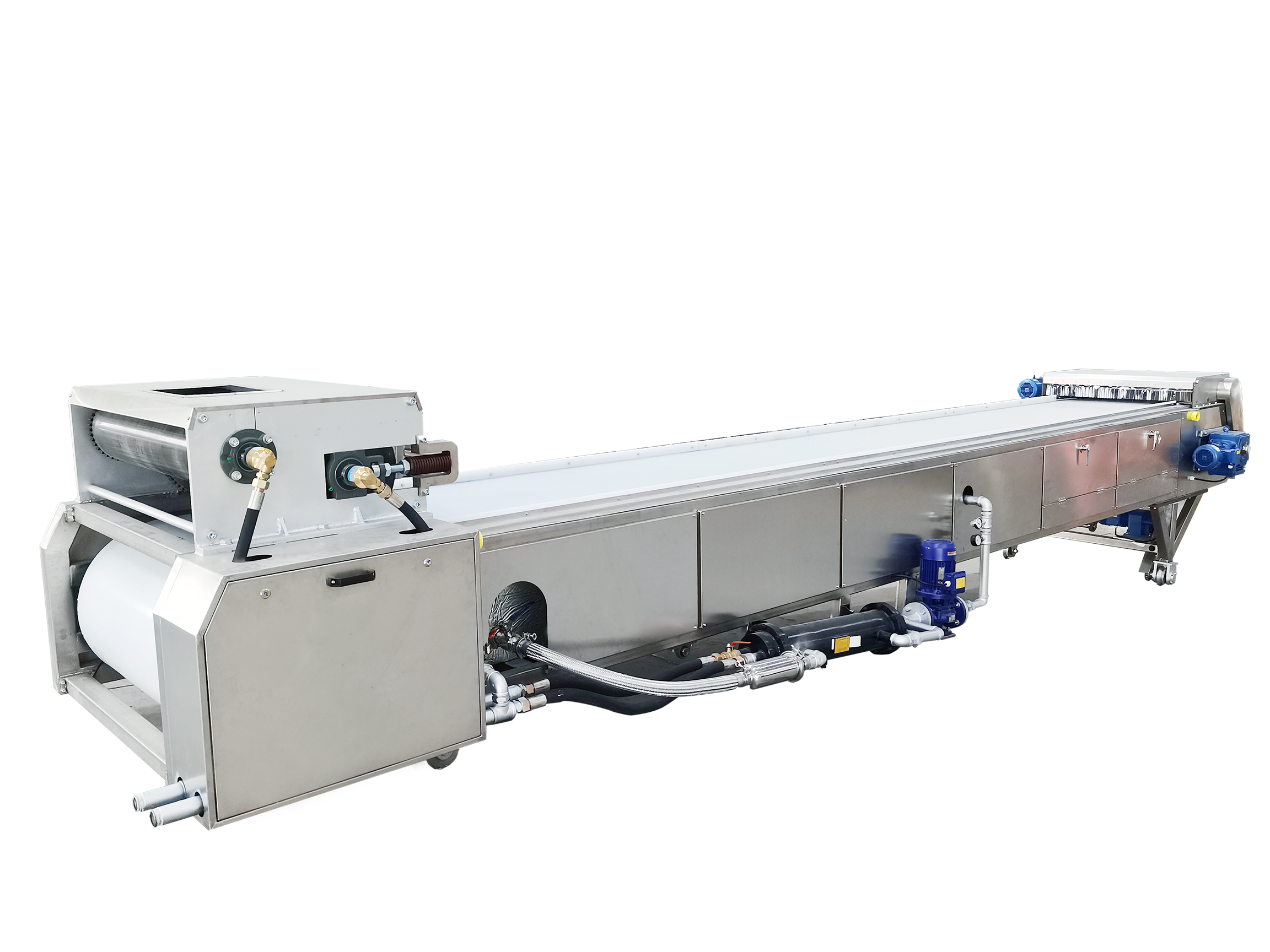

YPJ Series Air Cooling Belt is composed of cooling rollers, stainless steel strips’ conveyor, crusher and cooling air system. The hot-melt materials discharged from extruder are rolled to thin sheet with thickness of 1-2mm by cooling rollers, and cooled down on the stainless steel strips’ conveyor to normal temperature by cooling air, then crushed into chips and discharged. Air filtration and heat exchange system can be selectively equipped.

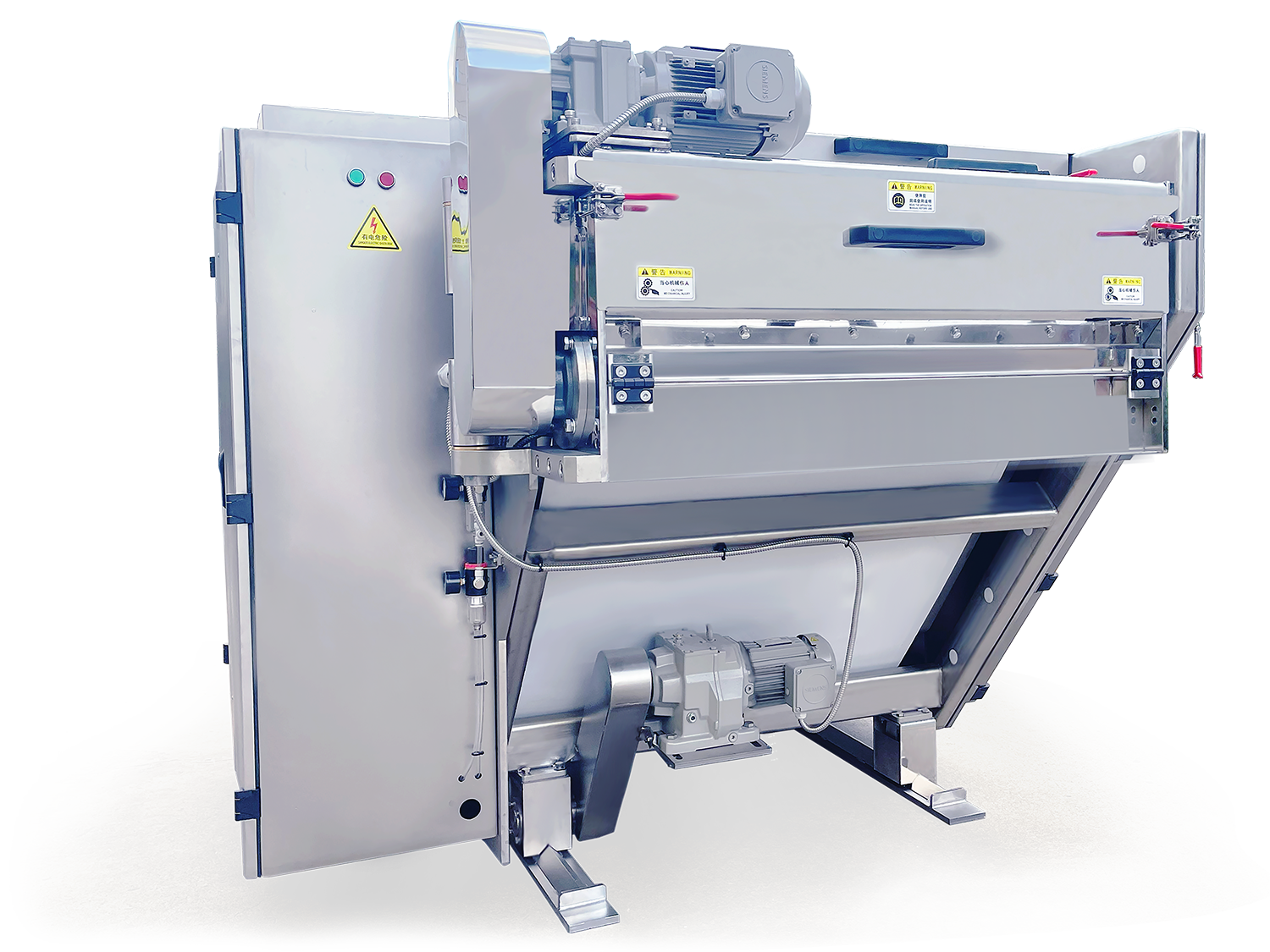

YPR Series Drum Cooler is one of our company's patented products. On the premise of the same output, the long traditional cooling belt is replaced by PU belt. It is composed of cooling roller, cooling drum, PU belt and crusher.The hot-melt materials discharged from extruder are rolled to thin sheet with thickness of 1-2mm by cooling roller and cooling drum, being cooled down by cooling drum to normal temperature during conveying, then being crushed into chips and discharged.

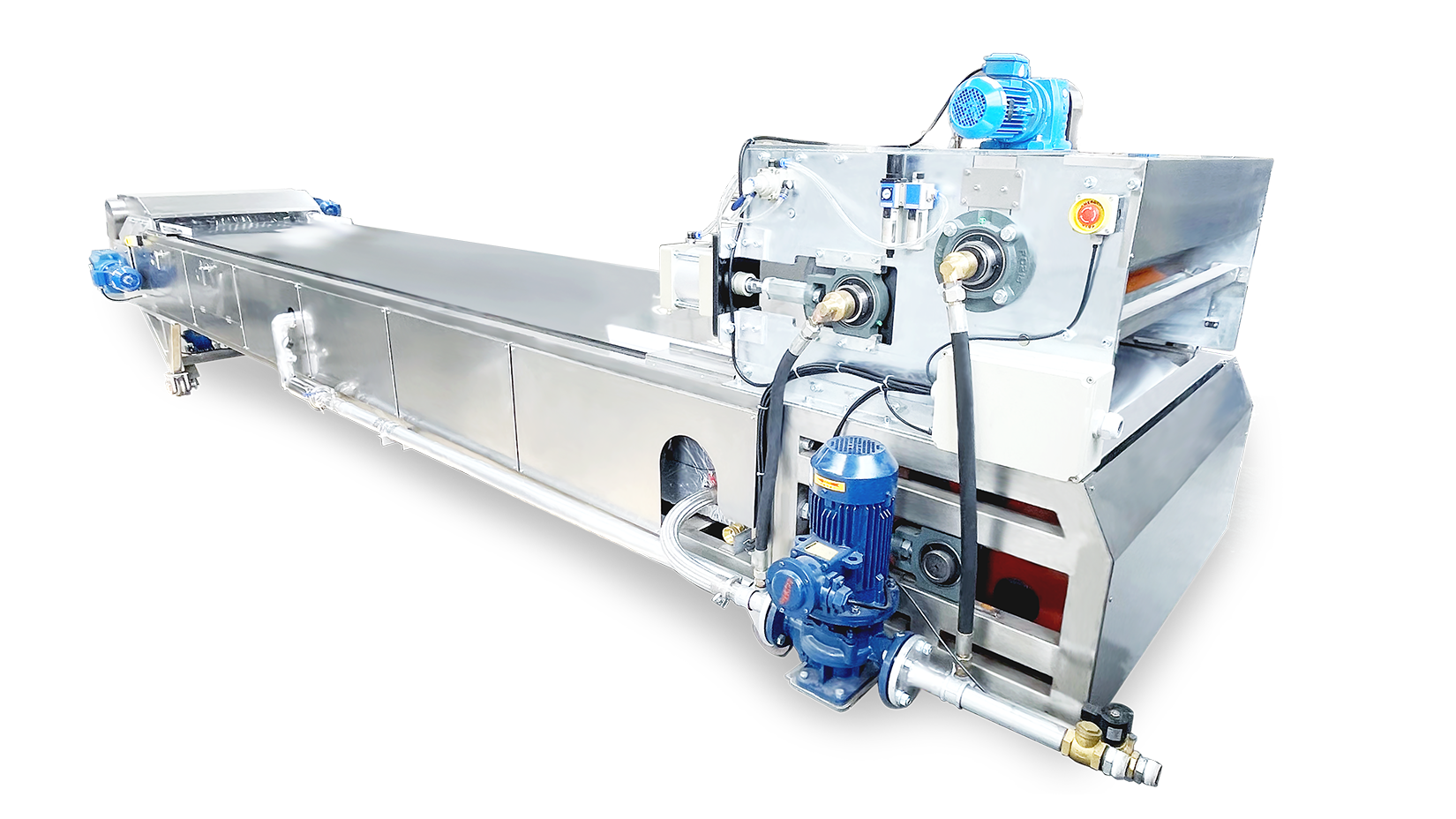

YPW Series Water Cooling Belt is composed of cooling rollers, stainless steel conveyor, crusher and cooling water spraying system. The cooling water spraying system is used to cool down stainless steel belt. The hot-melt materials from extruder are squeezed to thin sheet with thickness 1-2mm by cooling rollers, and being cooled down on the stainless steel conveyor to normal temperature, then being crushed into chips and discharged. This series of cooling belt can meet the output requirements from lab scale to utmost production, which makes it an ideal equipment for chips production.
