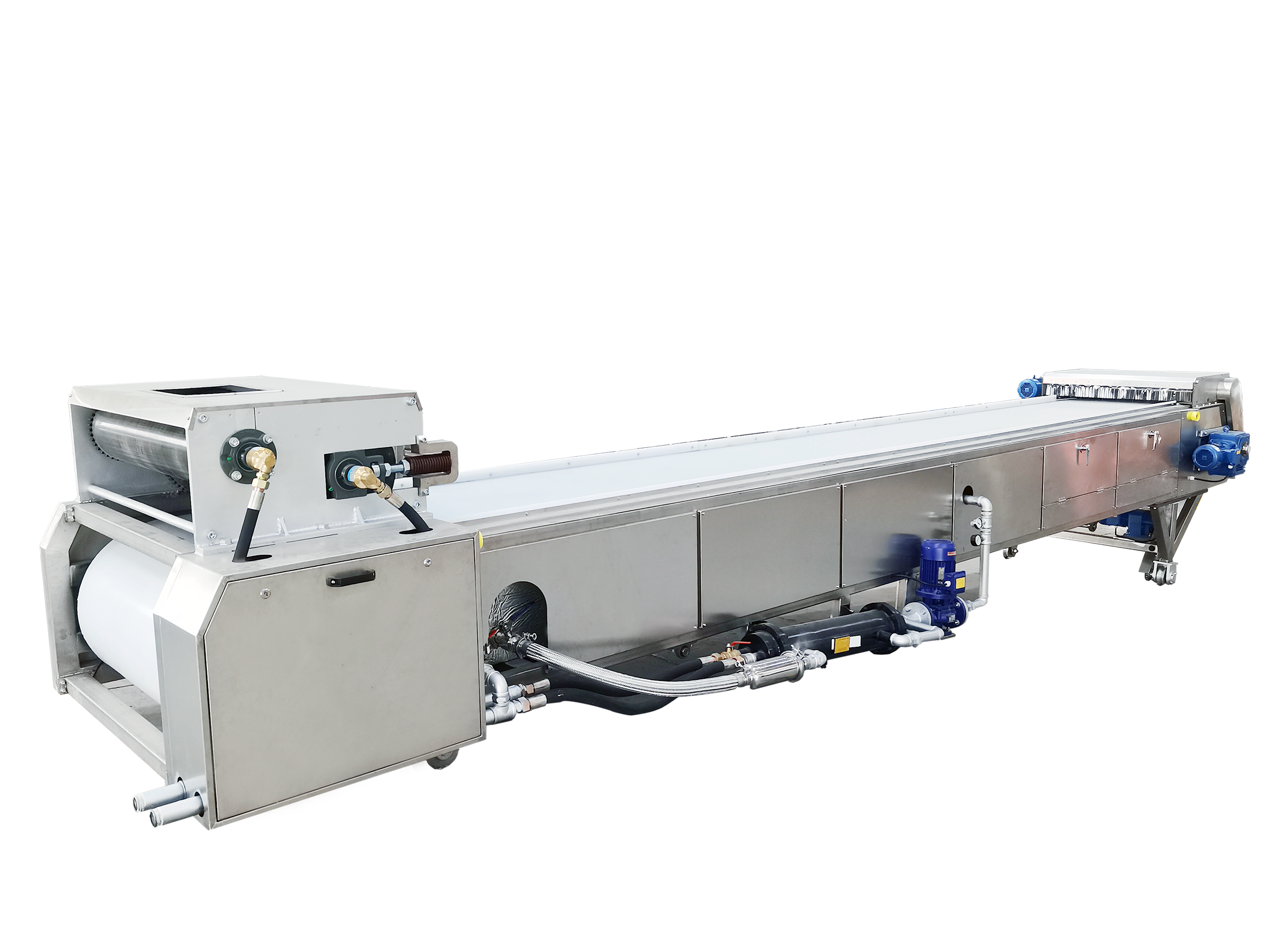

RBCC Steel Belt Cooler
Product Description

The RBCC series stainless steel belt cooler uses a continuously rotating steel belt as its core conveying medium. It applies precise pressure through upper and lower pressure rollers, while adjusting the material forming temperature by means of a temperature control system, ensuring the material maintains an appropriate temperature and uniform density. In terms of output performance, this equipment adopts a continuous operation design, combined with adjustable steel belt running speed and wider pressure rollers, enabling higher output per unit. It can directly meet the daily production capacity requirements of large and medium-sized powder coating factories. Additionally, while ensuring high output, the equipment also balances production environmental friendliness and operational convenience.

Features
Product Description

The RBCC series stainless steel belt cooler comprises cooling rollers, a stainless steel conveyor, a crusher, and a cooling water spray system.









Features:

Durable Stainless-Steel Frame- Ideal for water-cleaning environments.

Consistent Chip Size-Adjustable thickness and roller speed for precise control.

Clean Cooling System-Uses cold water to prevent contamination.

Enhanced Safety -Equipped with an emergency stop and reverse function.

Pressure Roller Gap Adjustment -Multiple adjustment methods available, including butterfly-type spring, for durability.

Efficient & Low-Noise Operation -High output with easy cleaning and maintenance.

Integrated & Separate Tank Design-Flexible options for installation and maintenance.

Dual Filtration System-Easy to clean and maintain for optimal water quality.

Automatic Water Supply -Ensures continuous circulation with an auto-refill system to maintain adequate water levels.

Main Technical Parameter

Model Belt Effective Length (mm) Belt Effective Width (mm) Output(kg/h) Squeezing/Conveying
Crushing Power(kW)
 Extrusion Roller
Diameter(mm)
Dimension(mm)
RBCC100/50 6000 1000 600 1.1/1.1/1.1 418/240 7375x1700x1800
RBCC100/60 7000 1000 800 1.1/1.1/1.1 418/240 8375x1700x1800
RBCC100/70 8000 1000 1000 1.1/1.5/1.1 418/240 9375x1700x1800
RBCC120/50 6000 1200 800 1.5/1.5/1.5 418/240 7375x1900x1800
RBCC120/60 7000 1200 1000 1.5/1.5/1.5 418/240 8375x1900x1800
RBCC120/70 8000 1200 1200 1.5/2.2/1.5 418/240 9375x1900x1800
RBCC150/50 6000 1500 1000 2.2/2.2/2.2 418/240 7375x2200x1800
RBCC150/60 7000 1500 1250 2.2/2.2/2.2 418/240 8375x2200x1800
RBCC150/70 8000 1500 1500 2.2/2.2/2.2 418/240 9375x2200x1800
