Anti-explosion design,
in accordance to EU ATEX/PSR11 standards.
Small footprint, enhance space efficiency.
Lowered labour cost and production cost
Low noise pollution and emission
Automated design, high production efficiency
Stable/adjustable particle size distribution
PLC/Touch Screen Control, with capacity for LAN/WLAN
connection for centralised production control
Convenient cleaning and colour change
process for different powder products
Automated feeding/weighing system,
with automatic packing capacity
![](/uploads/20210927/f80720f37227eca9b35db8f90dcccb43.jpg)
Lingyu's own industrial control system of powder coating integrated production line can achieve high level of automationthroughout the whole production process. Particle size can be adjusted freely at anytime during the production process,improving output and saving labour.
Output(kg/h) | Mixer | Extruder | Cooling Belt | Mill |
80-120 | FHJ-100/PHJ-150 | SLJ-36 | YPW-526/YPJ-408/YPR-100 | LYF-07 |
150-200 | FHJ-300/PHJ-300 | SLJ-41/SLJ-40A | YPW-640/YPJ-5010/YPR-300 | LYF-20 |
300-400 | FHJ-300/PHJ-500 | SLJ-50/SLJ-50A | YPW-850/YPJ-5012/YPR-500 | LYF-30 |
500-700 | FHJ-600/PHJ-500 | SLJ-65/SLJ-65A | YPW-1070/YPJ-6012/YPR-1000 | LYF-45 |
800-1000 | FHJ-1000/PHJ-800 | SLJ-75/SLJ-75A | YPW-1270/YPJ-7012 | LYF-60 |
1000-1500 | FHJ-1500 | SLJ-95/SLJ-95A | YPW-1570 | LYF-70 |
Model | Output(kg/h) | Area(sq.m.) | Operator | Noise Pollution |
FL-100 | 80~120 | 10 | 1 | low |
FL-200 | 150~200 | 40-50 | 1 | low |
FL-300 | 300~400 | 40-50 | 1 | low |
FL-500 | 500~700 | 50-60 | 1-2 | low |
FL-800 | 800~1000 | 55-71 | 1-2 | low |
FL-1000 | 1000~1500 | 72-80 | 1-2 | low |
![](images/protu5.png)

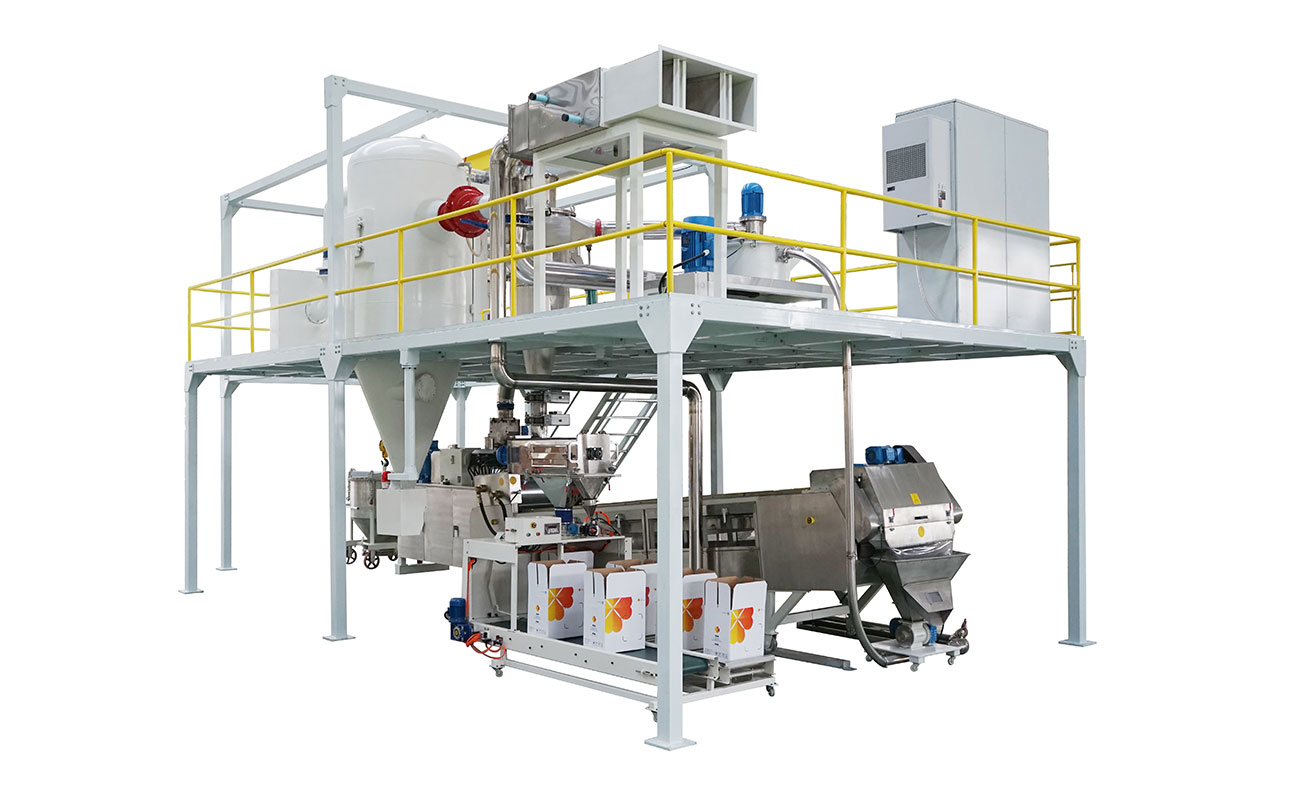

Flying Dragon Powder Coating Production Line
Anti-explosion design, in accordance to EU ATEX/PSR11 standards.
Small footprint, enhance space efficiency.
Lowered labour cost and production cost
Low noise pollution and emission
